Hop, a Language for Programming the Web 2.0
Manuel Serrano Inria Sophia Antipolis http://www.inria.fr/mimosa/Manuel.Serrano Erick Gallesio Université de Nice Inria Sophia Antipolis http://www.essi.fr/~eg Florian Loitsch Inria Sophia Antipolis http://www.inria.fr/mimosa/Florian.Loitsch

Abstract

Hop is a new higher-order language designed for programming interactive web applications such as web agendas, web galleries, music players, etc. It exposes a programming model based on two computation levels. The first one is in charge of executing the logic of an application while the second one is in charge of executing the graphical user interface. Hop separates the logic and the graphical user interface but it packages them together and it supports strong collaboration between the two engines. The two execution flows communicate through function calls and event loops. Both ends can initiate communications.

The paper presents the main constructions of Hop. It sketches its implementation and it presents an example of a simple web application written in Hop.


Table of contents


Download

Hop is available at: http://hop.inria.fr.

The web site contains the distribution of the source code, the online documentation, and various demonstrations.


1 Introduction

The recent evolution of the web makes it suitable for replacing traditional graphical user interfaces (henceforth GUIs). The combination of fast HTML rendering of modern web browsers (such as Gecko 20051111, shipped with Firefox 1.5), generalized support of CSS2 [15], yet expected to be rapidly supplanted by CSS3, and the recent adoption of asynchronous transactions (aka Ajax, the acronym of Asynchronous JavaScript and XML), makes web applications nearly as fancy and reactive as traditional GUIs. Some famous applications such as Google/mail, Google/map, or Zimbra's mailer demonstrate that web applications have bridged the gap with traditional GUIs.

In addition to allowing reactive and graphically pleasing interfaces, web applications are de facto distributed. Implementing an application with a web interface makes it instantly open to the world and accessible from much more than one computer. The web also partially solves the problem of platform compatibility because it physically separates the rendering engine from the computation engine. Therefore, the client does not have to make assumption on the server hardware configuration, and vice versa. Lastly, HTML is highly durable. While traditional graphical toolkits evolve continuously, obsoleting existing interfaces and breaking backward compatibility, modern web browsers that render on the edge web pages are still able to correctly display the web pages of the early 1990's.

For these reasons, the web is arguably ready to escape the beaten track of n-tiers applications, CGI scripting and interaction based on HTML forms. However, we think that it still lacks programming abstractions that minimize the overwhelming amount of technologies that need to be mastered when web programming is involved. As a step in this direction, we propose Hop, a higher order language aimed at programming interactive web applications. It is built on top of HTML, CSS, and JavaScript that are considered, in this work, as assembly languages.

1.1 The HOP programming language

Hop is mainly designed for programming small- to medium- sized interactive applications across the web. It is designed as a general-purpose web programming language which targets applications such as electronic agendas, photographs browsers, music players, mailer clients, operating system administration tools, and so on. In addition to enabling programming distributed applications over the web, Hop is also convenient for implementing applications that run on a single computer, on behalf of a single user. In that particular case, Hop is considered as a replacement for traditional graphical toolkits.

In contrast with most web-oriented languages and frameworks such as PHP and Ruby On Rails, the design of Hop is not database-centric. That is, while its standard library provides APIs for managing databases, Hop is not specially tuned for programming applications that access databases via the web. Hop is designed for programming various kinds of applications that need graphical user interfaces amongst which some might access databases.

Hop follows the path opened by Tcl/Tk, Java/Swing, or C/GTK+ but it differs from its ancestors by enforcing a strict separation between the programming of the interface from the programming of the logic of the applications. For that, it exposes a dual core execution model where one core executes the computations needed by the logic of the program while the second core executes the computations needed by the graphical interface. We have deliberately provided Hop with a stratified language approach in order to emphasize the duality of these programs. However Hop tightly links the code of the interface and the code of the logic:

  • it packages a whole application in a single location (e.g. a file).
  • it supports function calls that traverse the strata.
  • it supports data exchange between the strata.

Hop helps programming web applications because:

  • it eases the deployment of applications by hiding URLs and by packaging the components of an application in a single place.
  • it simplifies the control flow of the web application by allowing symmetric communications that can be initiated by both ends.
  • it supports efficient event loops that avoid busy waiting.
  • it eases the communication between servers and clients by supporting transparent function calls and partially shared name spaces.
  • it provides a library of pre-defined widgets.
  • it allows users to implement their own set of widgets that can be combined with the standard library for implementing complex GUIs.

1.2 Overview of the paper

The paper is organized as follows. Section Overall language design2 informally presents the stratified language design. Section The HOP dual syntax3 presents its syntax. The following Section The HOP dual evaluation4 presents its semantics. It zooms in the function calls, and it presents the Hop's event loop. Section Example5 presents an example of Hop programming. It shows a simplistic IMAP web client. Section Implementation6 sketches the current implementation of Hop. Section Discussion and Related work7 presents related work and envisions future work.


2 Overall language design

In this section, we present the rationale of Hop. We informally present its execution model and its syntax. This section only gives the intuition of what programming with Hop means. The technical presentations are left for Sections The HOP dual syntax3 and The HOP dual evaluation4.

2.1 Rationale

Hop fosters a model where the main computation of an application is executed on a server and the graphical user interface is executed on remote clients. From the user point of view, a Hop program is executed within a web browser and it is associated with a well known URL. Once the program starts, the server and the clients continuously communicate. The exchanges are implemented by remote function calls and event loops. Hop is well suited for implementing applications that need frequent communications between the server and the client. For instance, we have implemented a music player with Hop that continuously displays, on the client, the elapsed time of the songs played on the server. On that particular application, as with many others we have implemented with Hop, the server and the client are frequently hosted by the same physical computer.

2.2 A dual core execution

A Hop program is executed simultaneously on several engines. The main engine is dedicated to executing the logic of the program. It executes CPU demanding computations and operations that require system privileges for accessing files or other resources. The other engines, henceforth called GUI engines, are dedicated to executing actions related to the programming of the graphical user interfaces. Engines are mapped to actual physical computers. More than one engine can be mapped to a single computer.

When a Hop program starts, it first executes on the main engine. This elaborates the description of a graphical user interface that is sent to a GUI engine. From that moment, the execution flows from the GUI engine to the main engine and vice versa. The GUI engines may invoke services from the main engine by the means of function calls. The main engine may signal events to the GUI engines. Each event carries an identity and a value. Events are handled asynchronously. They are used by the main engine to notify GUI engines when a new information is available. They are a means for implementing pushing on the web.

2.3 A dual language

Hop is a stratified language. The first stratum is dedicated to programming the main engines, or the servers. The second stratum is dedicated to programming graphical user interfaces, or the clients.

Both strata provide different facilities. On the one hand, the main stratum provides an API for accessing the file system and the other resources of the computer that hosts it, but it does not support any facility for handling graphical user interfaces. On the other hand, the GUI strata is provided with a full set of functionalities for dealing with graphical interactions but it has drastically restricted accesses to the resources of the computer it executes on. Because they are using different APIs, in general, an expression of the main stratum cannot be executed on the client and vice versa.

2.4 Objectives

As presented in Section The HOP dual syntax3, Hop uses a compact syntax that is close to the syntax used in traditional XML authoring. However, it is a complete programming language that subsumes many web technologies. As such, it allows the implementation of libraries that can be combined for implementing complex applications.

For the sake of the example and to give an intuition of what Hop programming looks like, here is a complete Hop program:


(let ((def (<DIV> ""))
      (svc (service (w)
              (<P> (sql-exec db "SELECT * FROM dict WHERE (def=~a)" w)))))
   (<HTML>
      (<BODY>
         (<TABLE>
            (<TR>
               (<TD> "search")
               (<TD> (<INPUT>
                        :type "text"
                        :onkeyup ~(with-hop ($svc this.value)
                                     (lambda (h)
                                        (set! $def.innerHTML h))))))
            (<TR>
               (<TD> :colspan 2 def))))))


This program acts similarly to Google/suggest. The client displays an input box. It interactively reacts to key press events. Each time a new character is entered, the client invokes a service on the server which searches in a database the definition of the word sent by the client. On success, the definition is displayed back in the client display. The most important part of this example is the with-hop construction that invokes, from the client, a function located on the server. It is detailed in Section HOP services4.3


3 The HOP dual syntax

This section presents the syntax of Hop. It first presents the syntax of the main stratum. Then, it presents the syntax of the GUI stratum. The formal definition of the syntax is given in the Appendix.

3.1 The syntax of the main stratum

At first glance, the syntax of the main stratum of Hop is a mere variation around HTML involving superficial modifications. It merely introduces an extra open parenthesis before any markup and replaces the closing markup with the single closing parenthesis. It also encloses string literals within " characters. Therefore, the HTML expression:

<HTML>
   <BODY>
      <B>A plain text</B>
   </BODY>
</HTML>

is written in Hop, as:


(<HTML>
   (<BODY>
      (<B> "A plain text")))

In Hop, attributes are introduced by an identifier starting with a colon character (:) and their value is separated from the name by white spaces. Hence the corresponding Hop program of the HTML document of Figure 1 is written as in Figure 2.


<HTML>
   <BODY>
      <TABLE width="100%">
         <TR> <TD>0</TD></TR>
         <TR> <TD>1</TD></TR>
         <TR> <TD>2</TD></TR>
         <TR> <TD>3</TD></TR>
      </TABLE>
   </BODY>
</HTML>

Fig. 1: A simple HTML file.

In spite of the strong resemblance, there is a very important difference between the semantics of the two sources. While the HTML source can be interpreted as the external representation of a tree, the Hop source is actually a computer program that can be evaluated in order to produce a document. This is detailed in Section The HOP dual evaluation4.


(<HTML>
   (<BODY>
      (<TABLE> :width "100%"
         (<TR> (<TD> 0))
         (<TR> (<TD> 1))
         (<TR> (<TD> 2))
         (<TR> (<TD> 3)))))

Fig. 2: A simple HOP program.

3.2 The syntax of the GUI stratum

The GUI stratum is composed of GUI expressions. They are nested inside main expressions. The "~" character escapes from main expressions to GUI expressions. The GUI expressions are usually used as values of attributes, as can be seen in the following example:


(<HTML>
   (<BODY>
      (<BUTTON>
         :onclick ~(alert (* (Math.atan 1) 4))
         "Click me to see an approximation of PI")))

The character "$" escapes from the GUI stratum back to the main stratum. That is, it introduces an expression of the main stratum inside an expression of the GUI stratum. There is no limit to the nesting level so these main stratum expressions may, in turn, use the "~" character to escape back to the GUI stratum. For the sake of the example, let us consider a re-writing of the previous example where the approximation of π is moved to the main stratum:


(<HTML>
   (<BODY>
      (<BUTTON>
         :onclick ~(alert $(* 4 (atan 1)))
         "Click me to see an approximation of PI")))

Note that these two programs are likely to show different approximations since no provision is taken to guarantee that the precision of the arithmetic of the main stratum and the precision of the GUI stratum are the same.


4 The HOP dual evaluation

Hop brings abstraction to HTML. While HTML is a mere syntax that carries no semantics, Hop is a programming language. While a HTML expression denotes a tree, a Hop expression is evaluated in order to produce a value. While HTML markups are syntactic elements, in Hop, they are functions. More precisely, the meaning of the Hop expression:

   (fun a0 a1...)

is the application of the function fun to the arguments a0, a1. Provided with this semantics, we can reconsider the previous Hop expression:

   (<B> "A plain text")

This expression is actually the call of the function <B> with the literal string "A plain text" as argument. It should be noted that Hop identifiers may use more characters than most programming languages. In particular, the characters < and > are legal identifiers characters, as letters, digits, _, ?, !, and many others (see the Appendix).

Hop is unsurprisingly based on the Scheme algorithmic programming language [9] for which familiarity is assumed in the rest of this paper. Hop extends Scheme in many directions. It supports object-oriented programming, exceptions, modules, and multi-threading. It comes with various tools and libraries such as tools for constructing parsers and libraries for programming networks, multimedia applications, and so on. In addition to these features traditionally offered by programming languages, Hop supports original constructions specially designed for programming web applications. Since this paper focuses on web programming, it is intentionally shallow on the constructions that are not strictly related to this topic.

In the rest of this section, we present the Hop evaluation model. First, in Section Dual Execution4.1 we present how a program is spawned. Then, in Section The Elaboration time4.2, we present how GUI expressions are built. Then, the Section HOP services4.3 constitutes the heart of this paper. It presents how the two strata collaborate.

4.1 Dual Execution

The execution of a Hop program differs from the execution of traditional computer programs. In order to be executed, a Hop program has to be first loaded on a HOP server. This server conforms to the HTTP protocol [4]. It binds the program to an URL provided by the administrator of the server. This URL is used by clients (i.e. web browsers) to start the program.

A Hop program constructs a response to an HTTP request. In general, this response is a XML document but in some situations it can be any other data structures. For the sake of simplicity, in this paper, we focus on HTML responses only but all the presented techniques also directly apply to XML.

The execution of a Hop program is distributed. One part is executed on the server which evaluates the expressions of the main stratum. The second part is executed on the client which evaluates the expressions of the GUI stratum. In general the execution flow switches from a server to a client and vice versa but Hop also allows two (or more) execution flows to run in parallel. The client communicates with the server via remote function calls. The server communicates with the client via signals. Both communication means allow compound values to be carried.

4.2 The Elaboration time

The purpose of most Hop programs is to build HTML pages that are visualized by web browsers. The phase of the execution on the server where the HTML pages are constructed is called elaboration. It takes place before any execution can start on the client.

Hop implements HTML pages as trees. The Hop libraries of the two strata provide functions for constructing and manipulating them. In both strata, the trees are first class values. Hence, they can be passed as argument to functions, returned as results, and stored into data structures and variables. For the sake of the example, Figure 3 is a re-writing of the Hop program presented Figure 2 where the four rows of the table are bound to local variables.


(let ((row0 (<TR> (<TD> 0)))
      (row1 (<TR> (<TD> 1)))
      (row2 (<TR> (<TD> 2)))
      (row3 (<TR> (<TD> 3))))
   (<HTML>
      (let ((table (<TABLE> row0 row1 row2 row3)))
         (<BODY> table))))

Fig. 3: Using variables in HOP programs.

The interest of such an approach is better understood when some abstraction is used. In the example of Figure 4 a function is defined for automating the construction of the rows of the table.


(define (<ROW> v)
   (<TR> (<TD> v)))

(<HTML>
   (let ((table (<TABLE> (<ROW> 0) (<ROW> 1) (<ROW> 2) (<ROW> 3))))
      (<BODY> table)))

Fig. 4: Using HOP naming conventions.

Note that the Hop convention is to surround the name of the functions that build HTML trees by the < and > characters and to use upper case letters. This example implicitly unveils that Hop standard HTML markups are implemented as regular functions. It also shows that defining a new markup in a user program is no more complex than defining a function.

As presented in Section The syntax of the GUI stratum3.2, any expression of the main stratum can be nested in an expression of the GUI stratum after an escaping $ character. At elaboration time, the escaping main stratum expressions are evaluated and the resulting values are injected in the response. In consequence, when the response is shipped to the client it is totally stripped of main stratum expressions. Let's consider the Hop source of Figure 5 before elaboration.


 1: (define x "out")
 2: (define y (vector 1 2 3))
 3:
 4: (<HTML>
 5:    (<BODY>
 6:       (<SCRIPT> ~(define x 0))
 7:       (<P> :onmouseover ~(begin
 8:                             (set! x (+ 1 x))
 9:                             (alert "over=" x))
10:            :onmouseout (alert $x)
11:            :onclick (alert $y)
12:            "foo")))

Fig. 5: A program before elaboration.

Reflecting the two different execution times, the two strata use separate name spaces. A variable from the main stratum and a variable from the GUI stratum can hence hold the same name without conflicting. In other words, the variables defined line 1 and line 6 of Figure 5 are different. The elaboration phase replaces the occurrences of the variable x that belongs to the main stratum line 10 with the value "out" but it leaves the variable x that belongs to the GUI stratum line 9 as shown in Figure 6.


 4: (<HTML>
 5:    (<BODY>
 6:       (<SCRIPT> ~(define x 0))
 7:       (<P> :onmouseover ~(begin
 8:                             (set! x (+ 1 x))
 9:                             (alert "over=" x))
10:            :onmouseout ~(alert "out")
11:            :onclick ~(alert '#(1 2 3))
12:            "foo")))

Fig. 6: The program after elaboration.

As it can be seen here, the variable y which is bound to a Hop vector in Figure 5, line 2 is replaced with a constant vector in Figure 6, line 11. This shows that the elaboration can inject complex data structures in the response. In particular it can inject tree branches that are under construction. This is illustrated by the next example that shows that an HTML tree can be used when constructing a document in the main Hop program (line 5 of Figure 7) and can also be injected in the GUI stratum (line 7). The following example constructs an HTML page that swaps the two items of the unordered list each time the button is clicked.


 1: (let ((el (<UL> (<LI> "foo") (<LI> "bar"))))
 2:    (<HTML>
 3:       (<HOP-HEAD>)
 4:       (<BODY>
 5:          el
 6:          (<BUTTON>
 7:             :onclick ~(let* ((nodes (dom-child-nodes $el))
 8:                              (a (array-ref nodes 0))
 9:                              (b (array-ref nodes 1)))
10:                          (dom-append-child! $el (dom-replaceChild a b)))
11:             "swap me"))))

Fig. 7: Injecting a tree branch.

4.3 HOP services

This section presents one of the main technical novelty brought by Hop, namely the Hop remote services.

4.3.1 HOP service definition

HTML's URLs play a role similar to functions in programming languages. Let us consider the following HTML page (for simplicity, expressed in the Hop syntax):

(<HTML>
   ;; a link to google portal
   (<A> :href "http://www.google.com" "Google Portal")
   ;; a google request
   (<FORM> :action "http://www.google.com/search"
           (<INPUT> :type "text" :name "q" :value "")
           (<INPUT> :type "submit" :name "btnG" :value "search")))

In a plain HTML document, the URL http://www.google.com could be considered as a function named www.google.com whose signature is:

   unit → HTMLtree

It is called when a user clicks on the hyper link implemented by the <A> markup. Similarly, the URL http://www.google.com/search denotes another function. It is called when the user clicks the submit button. This one accepts a parameter named q and its signature is hence:

   string → HTMLtree

Hop transparently binds URLs to special functions called services. These reside on the server and they are called from the clients. They are defined by the form define-service whose syntax is:


   (define-service (<ident> <ident>0 ...)
      <expression>)

<Ident> is the name of the service and <ident>0, ... are its parameters. The form define-service is similar to the Scheme function definition form define but in addition to binding a function to an identifier in the server, it also binds it to an URL that can be used to run a Hop program. Let us consider the following example which is a complete Hop program:


 1: (define-service (portal)
 2:    ;; produce a web page containing a big lambda character
 3:    (<HTML>
 4:       (<BODY>
 5:          (<CENTER> (<B> (<BIG> (<BIG> (<BIG> (<BIG> "&#955;")))))))))
 6:
 7: (define-service (rev q)
 8:    ;; produce a web page made of the reverse of the argument
 9:    (<HTML>
10:       (<BODY>
11:          (<CENTER> (<B> (list->string (reverse (string->list q))))))))
12:
13: (<HTML>
14:    ;; a link to our Hop portal
15:    (<A> :href portal "portal")
16:    ;; a HOP request
17:    (<FORM> :action rev
18:            (<INPUT> :type "text" :name "q" :value "")
19:            (<INPUT> :type "submit" :name "btnG" :value "reverse")))

Fig. 8: A complete HOP program defining two services.

When this program is executed, it first binds two services: portal line 1 and rev line 7. Then, line 13, it elaborates an answer which is an HTML tree containing, line 15, a call to the first service and, line 17, a call to the second service.

Similarly to anonymous functions, Hop supports anonymous services which are not bound to any public URL. They are introduced by the form service:


   (service (<ident>0 ...)
      <expression>)

Anonymous services are illustrated on the example presented in Figure 9. This Hop program manages a dynamic list of items. The form started at line 5 adds new entries. Clicking the submit button of line 8, calls the anonymous service defined in line 6. On the server, this service recursively calls the function loop, defined in line 1, with the value of the input entry of line 7 added to the list. The forms of line 13 works in a similar way but instead of adding elements they remove elements one at a time.


 1: (let loop ((items (list "foo" "bar" "gee")))
 2:    (<HTML>
 3:       (<BODY>
 4:          (<H3> "To do list")
 5:          (<FORM>
 6:             :action (service (new) (loop (cons new items)))
 7:             (<INPUT> :name "new" :type "text" :size 40)
 8:             (<INPUT> :type "submit" :value "add new item"))
 9:          (<TABLE>
10:             (map (lambda (item)
11:                     (<TR>
12:                        (<TD> item)
13:                        (<TD> (<FORM>
14:                                 :action (service () (loop (delete! item items)))
15:                                 (<INPUT> :type "submit" :value "remove")))))
16:                  items)))))

Fig. 9: An example of anonymous services.

4.3.2 HOP service calls

The service calls presented in Section HOP service definition4.3.1 suffer a strong restriction: they can only produce complete web pages. By the definition of HTTP and HTML they can hardly be used to compute partial results. In order to work around this limitation, web browsers have introduced a new communication means which enables clients to call services from servers and which enables clients to handle, as they wish, the results of the calls. The term Ajax has been coined for denoting programs using this capacity. This section, presents its support in Hop.

In addition to the <A> and <FORM> function invocations, any Hop service can be called, from the GUI stratum, with the following form:


  (with-hop (service arg0 ...)
     [(lambda (h) ...success expression...)
      [(lambda (h) ...failure expression...)]])

The with-hop form calls the service service with the arguments, arg0, .... When the call completes, on success, the optional GUI call-back procedure success is called. On failure, the optional call-back failure is called. Both call-back procedures accept one argument which is the result of the evaluation of the service on the main stratum. The example of Figure 10 shows an example of service call. In the GUI stratum, it invokes a service that returns the local date of the server which is displayed in a dialog box (line 6).


1: (define-service (server-date)
2:    (current-date))
3:
4: (<HTML>
5:   (<BUTTON>
6:      :onclick ~(with-hop ($server-date) (lambda (h) (alert h)))
7:       "Server time"))

Fig. 10: An example of function call.

Compound data structure can transit from servers to clients and vice versa. The following example sends a list from the client to the server which, in turn, builds an HTML page containing a table and sends it back to the client. This new table replaces the initial empty element.


 1: (define-service (add10 lst)
 2:    (<TABLE>
 3:       (<TR>
 4:          (map (lambda (e) (<TD> (+ 10 e))) lst)))))
 5:
 6: (<HTML>
 7:    (<HEAD> (<HOP-HEAD>))
 8:    (let ((el (<DIV> "")))
 9:       (<BUTTON>
10:          :onclick ~(with-hop ($add10 (list 1 2 3))
11:                       (lambda (h)
12:                          (set! $el.innerHTML h)))
13:          el)))

Fig. 11: Arguments of function calls.

Because compound values can be exchanged, we could decide to modify the previous program in order to ship a list, from the server to the client, and construct the new HTML table in the client. This modification is presented Figure 12.


 1: (define-service (add10 lst)
 2:    (map (lambda (e) (+ 10 e)) lst))
 3:
 4: (<HTML>
 5:    (<HEAD> (<HOP-HEAD>))
 6:    (let ((el (<DIV> "")))
 7:       (<BUTTON>
 8:          :onclick ~(with-hop ($add10 (list 1 2 3))
 9:                       (lambda (h)
10:                          (let ((t (<TABLE> (<TR> (map <TD> h))) ))
11:                             (dom-remove-child!
12:                              $el (array-ref (dom-child-nodes $el) 0))
13:                             (dom-append-child! $el t))))
14:          el)))

Fig. 12: Sending complex data structures.

In addition to enable communications from clients to servers the form with-hop can also be used to establish a communication between two servers. In that case, an extra parameter denoting the distant server is added. For instance, the following code can be used to fetch the date from a remote server:


(with-hop :host "http://remote.host:8080" ($server-date)
   (lambda (h) ...))

This example supposes that there is a Hop server listening to the socket port 8080 of the computer named remote.host. It also supposes that this server implements the service server-date. When one has to fetch information from a non Hop server, the form with-url can be used. It acts as with-hop except that it does not invoke a service on a distant server, it directly fetches the content of a document. Example:

(with-url "http://www.inria.fr/"
   (lambda (h) (xml-parse h ...)))

4.4 HOP Event loops

Hop provides two different kinds of event loops. The first ones are used to initiate, in the GUI stratum, computations at regular time intervals. Since, they are roughly equivalent to the JavaScript timer facilities, we only present them with the example shown Figure 13. This program polls every five seconds the server time which is updated on the client display.


 1: (<HTML>
 2:    (<HEAD> (<HOP-HEAD>))
 3:    (<BODY>
 4:       (let ((clock (<DIV> "")))
 5:          (<TIMEOUT-EVENT>
 6:             :timeout 5000
 7:             :handler ~(with-hop ($(service () (current-date)))
 8:                          (lambda (h)
 9:                             (set! $clock.innerHTML h)))
10:             clock))))

Fig. 13: HOP timer loops.

Hop also provides an event mechanism which prevents client to busy wait. These events are first declared on the server, that is in the main stratum of a Hop program. In the GUI stratum, clients register to these events by the means of the dedicated markup <HOP-EVENT>. When a server emits an event, registered clients are notified. The implementation of <HOP-EVENT> liberates clients from checking periodically event notifications. This is, to our knowledge, another technical innovation brought by Hop.

Events are instances of the hop-event class. The function of the main stratum that signals an event has the following prototype:


   signal-hop-event!: event × <value> → unit

The markup <HOP-EVENT> has the following shape:


(<HOP-EVENT>
   :event a-hop-event
   :handler a-client-code)

For the sake of the example, let us study a variation over the example of Figure 13. In this second version, the server initiates the communication with the client. That is, the client does not explicitly poll the server. It displays the server time when the server signals the event.


 1: (define evt (instantiate::hop-event (name "server time event")))
 2:
 3: (thread-start!
 4:  (make-thread
 5:   (lambda ()
 6:      (let loop ()
 7:         (sleep! 5000)
 8:         (signal-hop-event! evt (current-time))
 9:         (loop)))))
10:
11: (<HTML>
12:    (<HEAD> (<HOP-HEAD>))
13:    (<BODY>
14:       (let ((clock (<DIV> "")))
15:          (<HOP-EVENT>
16:             :event evt
17:             :handler ~(set! $clock.innerHTML event)
18:             clock))))

Fig. 14: HOP timer loops without client busy wait.

At Line 3 a thread is spawned on the server. This thread pauses during 5 seconds and then signals the event evt defined in line 1. The form instantiate creates an instance of the class hop-event. The event is intercepted on the GUI stratum in line 17. In the :handler block, following the JavaScript tradition of event handling, the variable event is automatically bound to the event that has been intercepted. The content of the clock <DIV> is replaced with the value carried by the event.

One may object that we have not eliminated the busy wait but moved it to the server. While, undubitably true, this is not a weakness of Hop. The point of this example is to show that clients may avoid busy waiting server events using the <HOP-EVENT> markups. It is up to the server to implement the appropriate signaling mechanism. The point of this section is only to show that the Hop notification implements a server push method.


5 Example

In this section, we show a small Hop application. We present an overly simplified IMAP client that uses a web interface. As shown in the screenshot of Figure 15, it presents a table with two columns. The left column displays the list of folders found on the IMAP servers. The upper right column shows the list of messages of the selected folder. The lower right column shows the body of the selected message. The application is interactive. Folders and messages are accessed on-demand using mouse clicks.

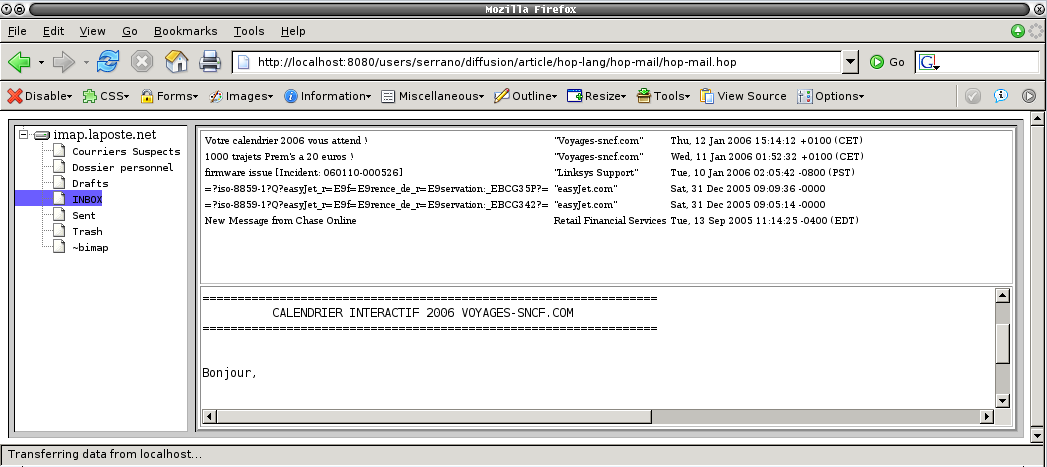

Fig. 15: Webmail, a screenshot of the simple HOP webmail in Firefox.

Hop provides a library for accessing IMAP servers. All the function that belong to this API are prefixed with imap-. This API being self explanatory, it is not discussed here. In order to make the application as compact as possible, we don't provide the IMAP client with a GUI for connecting to the IMAP server. Instead, the connection to the IMAP server is held in a global variable:


(define connection
   (imap-login
      (make-client-socket "imap.laposte.net" 993)
      "foo" "XXX"))

Then comes the heart of the application. It uses two Hop widgets, <TREE> and <PANED> which are popular widgets in traditional GUI programming and which are supported by Hop. This is presented in Figure 16.


(let ((folder (<DIV>))
      (message (<DIV>)))
   (define message-show ...)
   (define folder-summary ...)
   (define (<IMAP-TREE> connection) ...)
   (<HTML>
      (<HEAD>
          :css "hop-paned.css" :css "hop-tree.css" :css "hop-mail.css"
          :jscript "hop-paned.js" :jscript "hop-tree.js")
      (<BODY>
         (<PANED>
            :fraction 30
            (<PAN>
               (<IMAP-TREE> connection))
            (<PAN>
               (<TABLE>
                  :width "100%" :border "2px"
                  (<TR> (<TD> :class "folder" :valign 'top folder))
                  (<TR> (<TD> :class "message" :valign 'top message))))))))

Fig. 16: Webmail, main program.

The two <DIV>s, folder and message respectively contain the list of folders and the body of the selected message. The left column of the application is a tree whose label is the name of the IMAP server and whose leaves are labeled with the names of the folders.


(define (<IMAP-TREE> connection)
   (<TREE>
    (<TRHEAD>
      (socket-hostname connection))
    (<TRBODY>
      (map (lambda (f)
              (<TRLEAF>
               (<TT>
                 :class "summary"
                 :onclick
                 ~(with-hop ($folder-summary $f)
		     (lambda (h) (set! $folder.innerHTML h)))
                 f)))
           (imap-folders connection)))))

When a leaf of this tree is clicked-in, the service of the main stratum folder-summary is invoked with the name of the folder. The result of this function call fills the folder <DIV>. This is presented in Figure 17.


(define folder-summary
   (service (folder)
      (imap-folder-select connection folder)
      (<TABLE>
        :class "summary"
        (map (lambda (mh)
                (<TR>
                  :onclick ~(with-hop ($message-show $folder $(car mh))
                               (lambda (h) (set! $message.innerHTML h)))
                  (<TD> (imap-header-get mh 'subject))
                  (<TD> (imap-header-get mh 'from))
                  (<TD> (imap-header-get mh 'date))))
              (imap-folder-headers connection)))))

Fig. 17: Webmail, showing the messages of a folder.

The service folder-summary builds a table with three columns containing respectively the subject, the author, and the emission date of the message. When such a message is clicked, the service message-show is called with two parameters, the folder name and the message identifier. The result is used to fill the message box.


3: (define message-show
4:    (service (folder msg)
5:       (imap-folder-select connection folder)
6:       (<PRE> (imap-message-body connection msg))))


6 Implementation

This section sketches the implementation of services and events. Readers not interested in such technical details may freely skip this section.

6.1 Implementation of Services

Hop is currently implemented as a web server. It accepts HTTP requests and it selects, according to the URL, the appropriate treatment to execute. Services are implemented as couples containing one function and one URL. That is, each time a service (anonymous or not) is created, a new unique URL is generated, a new function is created and the couple {URL, function} is stored inside a table on the server. When a request is intercepted, this table is scanned for selecting the appropriate service to execute. When a service is used in the GUI stratum, a reference to it is compiled to JavaScript. At last, expressions of the GUI stratum are compiled on the fly to JavaScript by a Hop-to-JavaScript compiler whose description is out of scope of this present paper. Let us assume the following Hop expression:


(<BUTTON>
    :onclick ~(with-hop ($(service (x y) (+ x y)) 1 2)
                 ...)
    "Click this link")

The elaboration yields the following HTML document:


<BUTTON onclick='with_hop(
  function() {
    return hop_service_url("/hop/???/4-57604278",
                           ["x", "y"],
                           arguments )
  }(1, 2), ...)'>
  "Click this link"
</BUTTON>

The dynamically created URL /hop/???/4-57604278 is the unique identifier associated with the service. The current implementation of Hop is not able to reclaim these URLs. That is, it keeps alive for ever all the services and their URLs. It never collects URLs because we don't think that it exists a universal criterion allowing URL reclaim. Obviously, we could adopt a solution based on time stamping. For instance, we could arbitrarily decide to collect URL after two or three hours. We are reluctant to adopt such a solution but we are aware that this weakness has to be overcome in the future versions of Hop. We are investigating a solution where the server functions representing the services are encoded in the URL. More precisely according to this solution it would be no longer necessary to store the whole function on the server. Instead, only the closure environment would be encoded and sent to the client (i.e. the lexical environment active when the service was created). If this approach succeeds, it will remove the need for the table which binds URLs to functions.

The JavaScript functions with_hop and hop_service_url are defined in the standard Hop GUI stratum library. They are shipped with every generated page. As presented in Section HOP service calls4.3.2 the form with-hop calls asynchronously a service. It can be defined as:


function with_hop( service, success, failure ) {
 function callback( h ) {
  if( h.status == 200 )
    if(h.getAllResponseHeaders().indexOf("hop-json")>=0)
      return success( eval( h.responseText ) );
    else
      return success( h.responseText );
  else
    return success( h );
 };

 return hop( service, callback, failure );
}


The function hop_service_url maps a service to a URL. It could be implemented as:


function hop_service_url( service, formals, args ) {
   var len = formals.length;

   if( len == 0 ) {
      return service;
   } else {
      var url = service + "?hop-encoding=hop";
      var i;

      for( i = 0; i < len; i++ ) {
         url += "&" + formals[ i ] + "=" + hop_serialize( args[ i ] );
      }

      return url;
   }
}

The function hop_serialize marshals JavaScript values in a format compatible with the main stratum of Hop. When the server sends a value to the client which is not an HTML tree, it adds a hop-json header in the message and it uses the JSON external format that the client simply decodes with the JavaScript eval function call. The library function hop, whose code is not presented here, actually performs the JavaScript asynchronous call. It uses ad-hoc technics which are dependent of the clients web browsers.

6.2 Implementation of Events

The current implementation of the <HOP-EVENT> markup relies on services invocation. Waiting for an event is implemented as invoking an asynchronous service that returns only when the event is emitted from the client. More precisely, when an event e1 is created, the server automatically generates a service svce1. The markup <HOP-EVENT> is compiled, during the elaboration stage, as an invocation of svce1 (see Section HOP service calls4.3.2). This call completes when the server emits the signal e1. At that time, the client receives the value associated with the event. It re-invokes the service svce1 for waiting for other values and, in parallel, it handles the received value. Assuming the library function hop_event whose definition looks like:


function hop_event( event, event_handler ) {
  var http = new XMLHttpRequest();
  var url = "hop_event_wait?event=" + event;

  http.open( "GET", url, true );
  http.onreadystatechange = function() {
    if( http.readyState == 4 && http.status == 200 ) {
       // invokes the user handler
       event_handler( http );
}
       // recursively call the function in
       // order to wait new results
       hop_event( event, event_handler );
    }
  }
  http.send( null );
}

The actual implementation takes care of portability issues. The expression (<HOP-EVENT> evt handler) is then compiled to:


hop_event( evt, handler );

This implementation prevents the client from busy waiting events for the server because invoking a service using an XMLHttpRequest is an asynchronous operation that does not involve polling. Surprisingly, this simple technique appears to be robust and it allows to implement passive wait on the client quite easily. It has been suggested by Marc Feeley who deserves most of its credit.


8 Conclusion

Hop is a new computer language designed for programming web applications. It relies on two strata. The first one is used for programming the server side and for constructing graphical user interfaces. The second one is used for programming the animations of these interfaces and the interactions with users. The paper presents several examples of Hop programs. In particular, it shows the programming of a simplified IMAP client. This fifty lines long program displays interactively the messages stored on an IMAP server.

Hop abstracts many operations required by the web. So, for users not reluctant to functional programming, it makes the programming of these applications easier than most of the other languages we are aware of. Its main strengths are its ability to package a whole web application in a single bundle (e.g. a single file), its support for functions whose calls traverse the web, and its event notification mechanism. To our knowledge, Hop is one of the very first languages to propose a global solution to the web programming. Hop is one of the first language to support server and client programming, to manage communications initiated from both sides, and to support HTML authoring.


9 References

[1]Braband, C. and Møller, Sandholm, A. and Schwartzbach M.I. -- A runtime system for interactive Web services -- Journal of Computer Networks, 1999.
[2]Cardelli, L. -- Obliq A Language with Distributed Scope -- 122, Digital Equipment Corporation, Systems Research, Palo Alto, CA, 1994.
[3]Epardaud, S. -- Mobile Reactive Programming in ULM -- Utah, USA, Sep, 2004.
[4]Fielding, R. et al. -- Hypertext Transfer Protocol -- RFC 2616, The Internet Society, , 1999.
[5]Germain, G. and Monnier, S. and Feeley, M. -- Termite: a Lisp for Distributed Computing -- 2nd European LISP and Scheme Workshop, Glasgow, UK, , 2005.
[6]Graunke, P. and Findler, R. and Krishnamurthi, S. and Felleisen, M. -- Automatically restructuring programs for the Web -- 2004.
[7]Graunke, P. and Findler, R.B., and Krishnamurthi, S. and Felleisen, M. -- Modeling Web Interactions -- European Symposium on Programming, Poland, 2003.
[8]Hanus, M. -- High-level server side Web scripting in Curry -- Practical Aspects of Declarative Languages, Las Vegas, NV, USA, 2001.
[9]Kelsey, R. and Clinger, W. and Rees, J. -- The Revised(5) Report on the Algorithmic Language Scheme -- Higher-Order and Symbolic Computation, 11(1), Sep, 1998.
[10]Krishnamurthi, S. -- The CONTINUE Server (or, How I Administered PADL 2002 and 2003). -- Practical Aspects of Declarative Languages, New Orleans, LA, USA, Jan, 2003, pp. 2--16.
[11]Meijer, E. -- Server-Side web scripting in Haskell -- Journal of Functional Programming, 10(1), 2000.
[12]Queinnec, C. -- The influence of browsers on evaluators -- Int'l Conf. on Functional Programming, Montréal, Canada, Sep, 2000, pp. 23--33.
[13]Sandholm, A. and Schwartzbach, M.I -- A type system for dynamic Web documents -- Boston, MA, USA, Jan, 2000, pp. 290--301.
[14]Sewell, P. et al. -- Acute: High-level programming language design for distributed computation -- Int'l Conf. on Functional Programming, Tallinn, Estonia, Sep, 2005.
[15]World Wide Web Consortium -- Cascading Style Sheets, level 2 CSS2 Specification -- REC-CSS2-19980512, W3C Recommendation, May, 1998.

Appendix

This appendix presents the syntax of Hop in EBNF form:

<comment>; <all subsequent characters up to a line break>

<expression><main-expression>

<main-expression><simple-expression>
  | ~ <gui-expression>

<gui-expression><simple-expression>
  | $ <main-expression>

<simple-expression><literal>
  | <identifier>
  | <attribute>
  | (<expression> <expression>*)

<identifier><initial> { <letter> | <digit> | <special> }
<initial><letter> | <special>
<letter>a | b | ... | z | A | B | ... | Z
<digit>0 | 1 | ... | 9
<special>_ | + | - | / | * | ? | > | < | = | ! | %
  | ~ | @ | ^ | & | \

<attribute>: <identifier>

<literal><number>
  | <character>
  | <string>
  | <boolean>

<number><digit>+
  | <digit>+ . <digit>*
  | . <digit>+

<character>#\ <any character>

<string>" <string-element>* "
<string-element><any character other than " or \>
  | \" | \\
<boolean>#t | #f


This Html page has been produced by Skribe.
Last update Wed Aug 23 10:35:37 2006.
